Smart dimming controller with power measurement

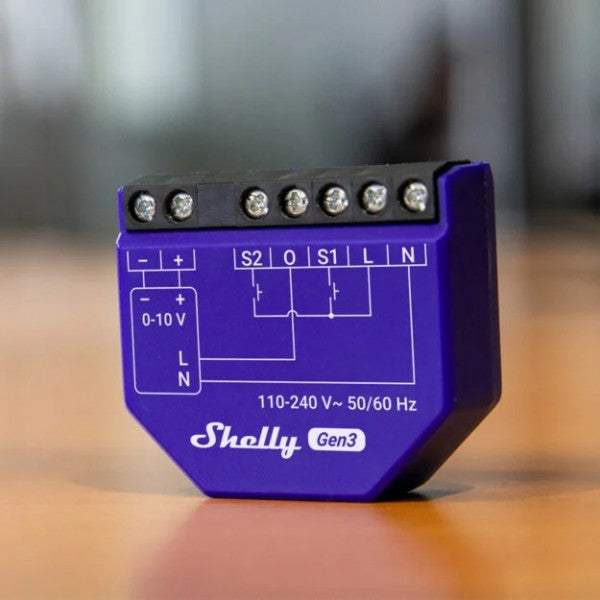

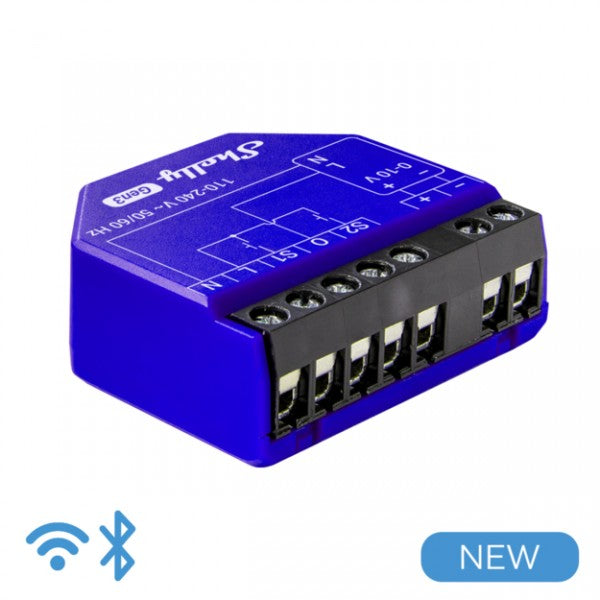

The Shelly Dimmer 0/1-10V PM Gen3 is suitable for controlling 0/1-10V dimmers and enables precise dimming with power measurement. It is retrofit-capable and can be used with any conventional switch you have at home.
- Supports 0-10V and 1-10V drivers (lamps, motors, valves, etc.)
- WLAN and Bluetooth controlled
- Shelly Plus Add-On compatible: Supports connection to the sensor interface to measure various data (humidity, temperature, etc.)
- Dimming mode with one or two buttons (use with conventional switches)
- Customizable thresholds and offsets for temperature, humidity, and light when the dimmer is used with the Shelly Plus Add-on
- Power measurement: Precise monitoring of energy consumption. Information on voltage (V), current (A), and consumption (W) is displayed.
- Protection: Overcurrent/voltage/power protection
- "Night mode": Automatically sets the lighting brightness to a low level at night.
- WLAN range extender & BLE gateway
- Equipped with a new processor and larger flash memory - ESP Shelly
- No hub required! Easy control via the Shelly Smart Control App, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
WHY SHELLY SHELLY DIMMER 0/1-10V PM GEN3?
Use it with your existing wall switches!
Use the switches you already know and seamlessly integrate the dimming function into your current setup.
Features
WLAN-powered
Connect the Shelly Dimmer 0/1-10V PM Gen3 to your WLAN network.
No HUB required!
Bluetooth
Quick integration via Bluetooth or use as a Bluetooth gateway.
Power measurement
Provides accurate monitoring of power consumption and free data storage.
Flexible input control
Use it with your existing switches, whether with one or two buttons.
Smart schedules
Set individual schedules based on your daily routine or follow sunrise and sunset to control your lighting accordingly.
Smart scenes
Combine the Shelly Dimmer 0/1-10V PM Gen3 with other Shelly devices and set up custom scenes.
Features of the Gen3 series
On the way to Matter
Every Gen3 device is designed to be upgradable to Matter. The doubled memory compared to the Plus series ensures a smooth update process and paves the way for new smart features and integrations.
*Depending on the level of support for Matter features.
More memory, more power
The Gen3 series ensures the quality and reliability of our devices by using our powerful Shelly chip. With an impressive 8 MB of memory, the device's performance and efficiency are greatly improved. This significant memory increase not only guarantees smoother and faster operation but also equips the Gen3 series for the introduction of new features.
Unified control with virtual components
The Gen3 series introduces "virtual components" that change the management and control of third-party devices. Within the Shelly Smart Control App, you can now create virtual devices to integrate non-Shelly products into a unified control system. This feature enables efficient control of all your smart devices, regardless of brand, through a single user interface.
Technical data
| FEATURES | |
|---|---|

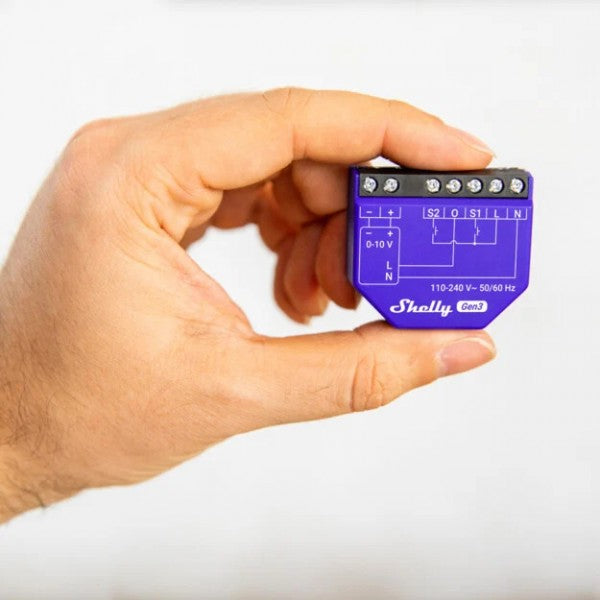

| Size (H x W x D): | 38.5 x 43.5 x 17mm / 1.52 x 1.71 x 0.67 inch |
| Weight: | 28.5 g |
| Screw terminal max. torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross-section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and ferrules) |
| Stripping length of conductor: | 5 to 6 mm / 0.20 to 0.24 inch |
| Mounting: | Wall bracket / behind the wall / ceiling construction |
| Housing material: | Plastic |
| FUNCTIONS | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % relative humidity |
| Max altitude above sea level: | 2000 m |
| CONNECTION | |
| Power supply: | 110-240 V~ 50/60 Hz |
| Device power consumption: | < 1.5 W |
| External protection: | 16 A, trip characteristic B or C, 6 kA breaking capacity, energy limitation class 3 |
| Max switching voltage: | 240 V~ |
| Max switching current: | 13 A |
| Max control current: | 35 mA |
| Voltmeter (AC): | 110 - 240 V |
| Ammeter (AC): | 50 mA - 16 A |
| Measurement device accuracy: | ±10 % |
| Power and energy meter: | Active and apparent power / active and apparent energy / power factor |
| Measurement data storage: | No |
| Internal temperature sensor: | Yes |
| CONNECTIVITY | |
| Wi-Fi protocol: | 802.11 b/g/n |
| Frequency band: | 2401-2495 MHz |
| Max RF power: | < 20 dBm |
| Range: | Up to 30 m outdoors and up to 50 m indoors (depending on local conditions) |
| Bluetooth protocol: | 4.2 |
| Frequency band: | 2400-2483,5 MHz |
| Max RF power: | < 4 dBm |
| Range: | Up to 30 m outdoors, up to 10 m indoors (depending on local conditions) |
| MCU | |
| CPU: | Shelly ESP32 C3 |
| Clock frequency: | 40 MHz |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| WebHooks (URL actions): | 20 with five URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules: | Yes |
| Key-value database: | Yes |
