WHY SHELLY PRO 1PM?
Smart home solution for new residential and commercial buildings

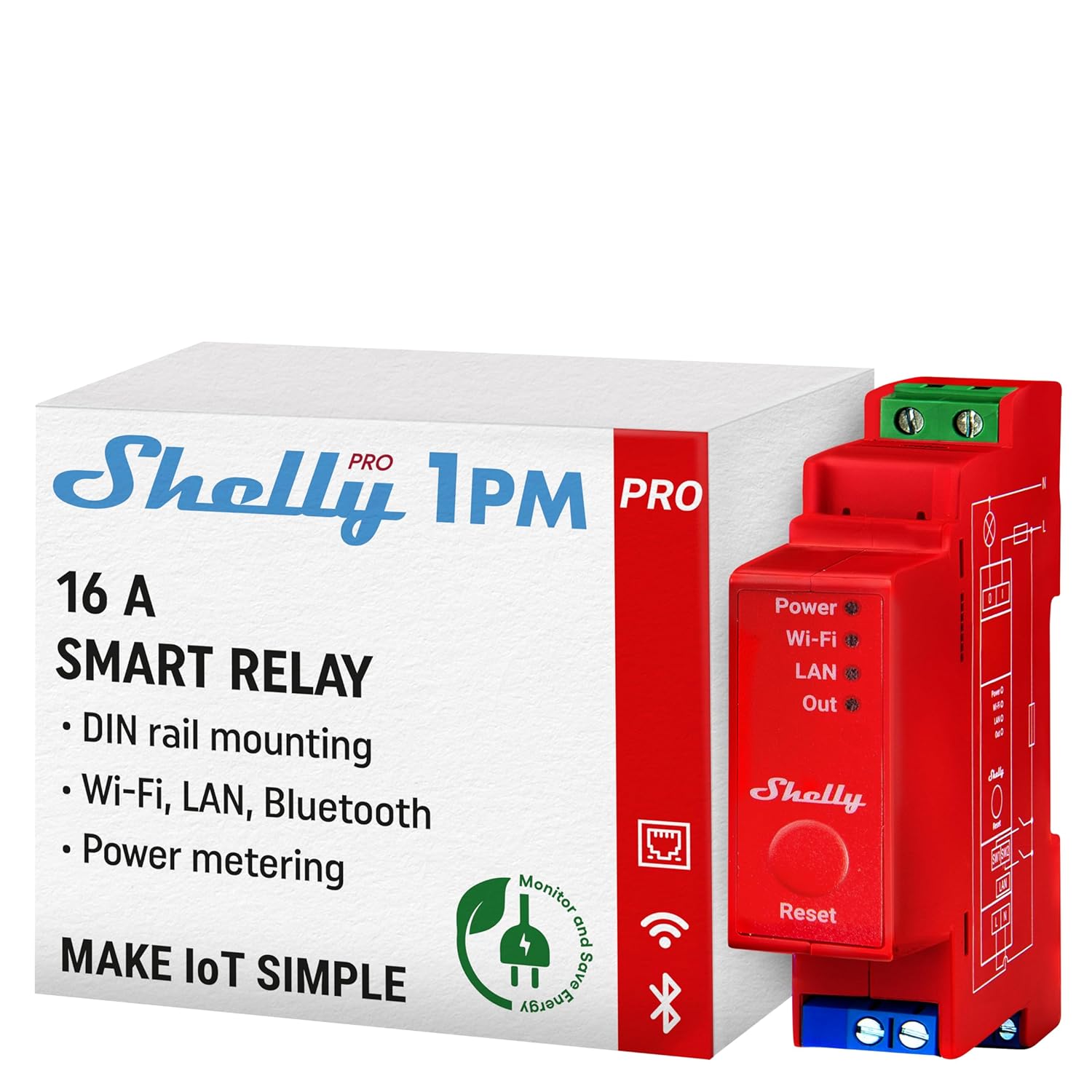

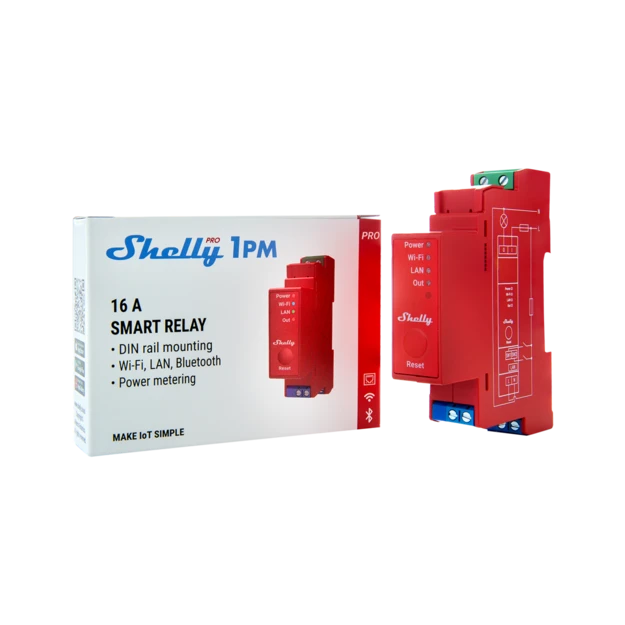

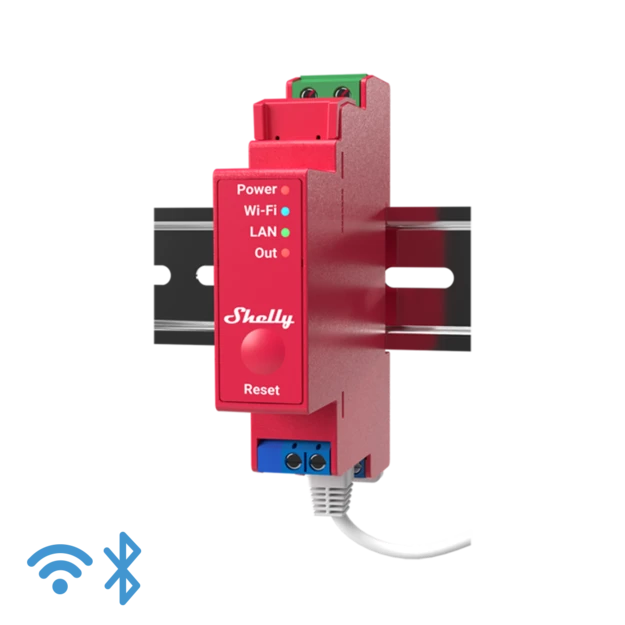

Shelly Pro 1PM is a single-phase 1-channel relay supporting up to 16 A. Equipped with an integrated power meter, Shelly Pro 1PM allows users to accurately measure the power consumption of any automated lighting or larger systems. Various types of actions, scenarios, and schedules can be set to synchronize your environment with your daily activities or business requirements. Additionally, Shelly Pro 1PM features scripting capabilities for custom automation scenarios based on external data or various events.
Shelly Pro series

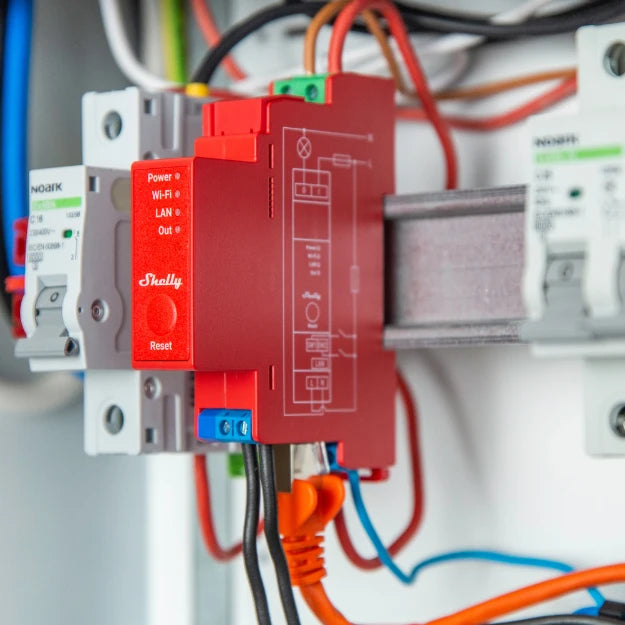

The Shelly Pro series has been enhanced with temperature, overload, and overvoltage load protection and is designed for installation in the fuse box (DIN). The Shelly Pro series enables full smart automation without additional wires or cabling and is perfect for apartments, offices, shops, commercial and production facilities, as well as new buildings.
FEATURES
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN use, with LAN as backup if needed.
1 channel, 16 A
Shelly Pro 1PM has a total device power of 16 A.
Precise Power Measurement
Shelly Pro 1PM ensures precise power consumption monitoring.
Wide range of voltage support
Use it to control a variety of devices and systems
Improved security
Enhanced security features and TLS 1.2 support enable a wide range of secure cloud-connected and local integrations
Scripting features
Shelly Pro 1PM fully supports mjS scripting, allowing you to create additional features and functions.
Endless application possibilities
AVOID ENERGY WASTE BY MONITORING POWER CONSUMPTION IN THE OFFICE
No more unnecessary energy consumption in the office over the weekend! Computers and monitors left on by mistake, plugged-in chargers, desk lamps left on, printers and copiers switched on, etc. – all these devices consume energy even when no one is in the office, unnecessarily increasing the monthly electricity bill. Avoid this by setting Shelly Pro 1PM to cut off power to office devices over the weekend to save energy. Use smart scheduling features to restore power before employees resume work.
EFFICIENT UNDERFLOOR HEATING CONTROL
Ensure the room temperature in your business or home is always comfortable – whether it’s a yoga studio, a gym changing room, a spa center, or your own living room!
Control your underfloor heating based on the current weather forecast or create a scenario with Shelly Pro 1PM and Shelly Flood to have the underfloor heating turn on when a drop in floor temperature is detected.
DEVICE CONTROL AND MONITORING
Forecast monthly costs and better plan your expenses! Automate electrical devices in the restaurant and monitor their energy consumption from anywhere – wherever you are. Shelly notifies you if a device is left on outside restaurant hours and prompts you to turn it off to avoid power consumption. Additionally, you can set smart schedules and have Shelly cut power to all unused electrical devices during the night and turn them back on shortly before kitchen opening.
PREVENTIVE MANAGEMENT
When an electrical device is damaged, it doesn’t just stop working. Usually, it increases energy consumption to compensate for its operating capacity. Since there is no visible performance difference, it can take months to notice a problem, leading to inefficiency and energy waste. Shelly Pro 1PM immediately detects the increase in energy consumption and notifies you, saving you additional costs for repairs or device replacement.
CONNECTIVITY
Wi-Fi
Operates on a 2.4 GHz Wi-Fi network and supports Access Point (AP) and Client Mode (CM) options.
Bluetooth
Add devices quickly and easily now via Bluetooth connection with the Shelly Cloud App
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN use, with LAN as backup if needed
SAFETY
Overheating Protection
Overload Protection (PM Devices)
Surge Protection (PM Devices)
Flame Retardant (V-0)
Technical Data
| CONNECTION | |
|---|---|
| AC Power Supply | 110-240V, 50/60Hz |
| Rated Current (Max Continuous Current) | 16A |
| Channels | 1 Channel (not potential-free) |
| SPECIAL FEATURES | |
| Shutter Mode | No |
| Device Temperature Protection | Yes |
| Overload Protection | Yes |
| Power Measurement | Yes |
| FEATURES | |
| HTTP/HTTPS Webhooks | Yes |
| Custom Scripts (mJs) | Yes |
| Ambient Temperature | -20°C to +40°C |
| Device Power Consumption | < 3 W |
| Smart On/Off | Yes |
| Local and Remote Control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL-listed Option | No |
| CONNECTIVITY | |
| Wi-Fi | Yes |
| Maximum RF Output Power | 13.34 dBm |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Frequency | 2412 - 2483 MHz |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| DIMENSIONS | |
| Size | 18.5mm x 89.5mm x 68.5mm |
